Model Number : REB305
Certification : ISo17712
Place of Origin : China
MOQ : 1pcs
Price : USD 0.05-1.2/pcs
Payment Terms : L/C, , T/T, Western Union
Delivery Time : 2-10 work days
Packaging Details : 10pcs per box,25boxes per carton
Size : Standard Size dia 8mm
Style : bolt seals
Application : Trailer doors/bulk tankers Railcar
Color : yellow/white/orange/others
Certificate : ISO17712,SGS
Custom ordered : Numbering, logo, barcode
Imprinting : : laser engaving,hot stamping
Strength: : 20KN
Material : ABS and Low-carbon Q235A steel

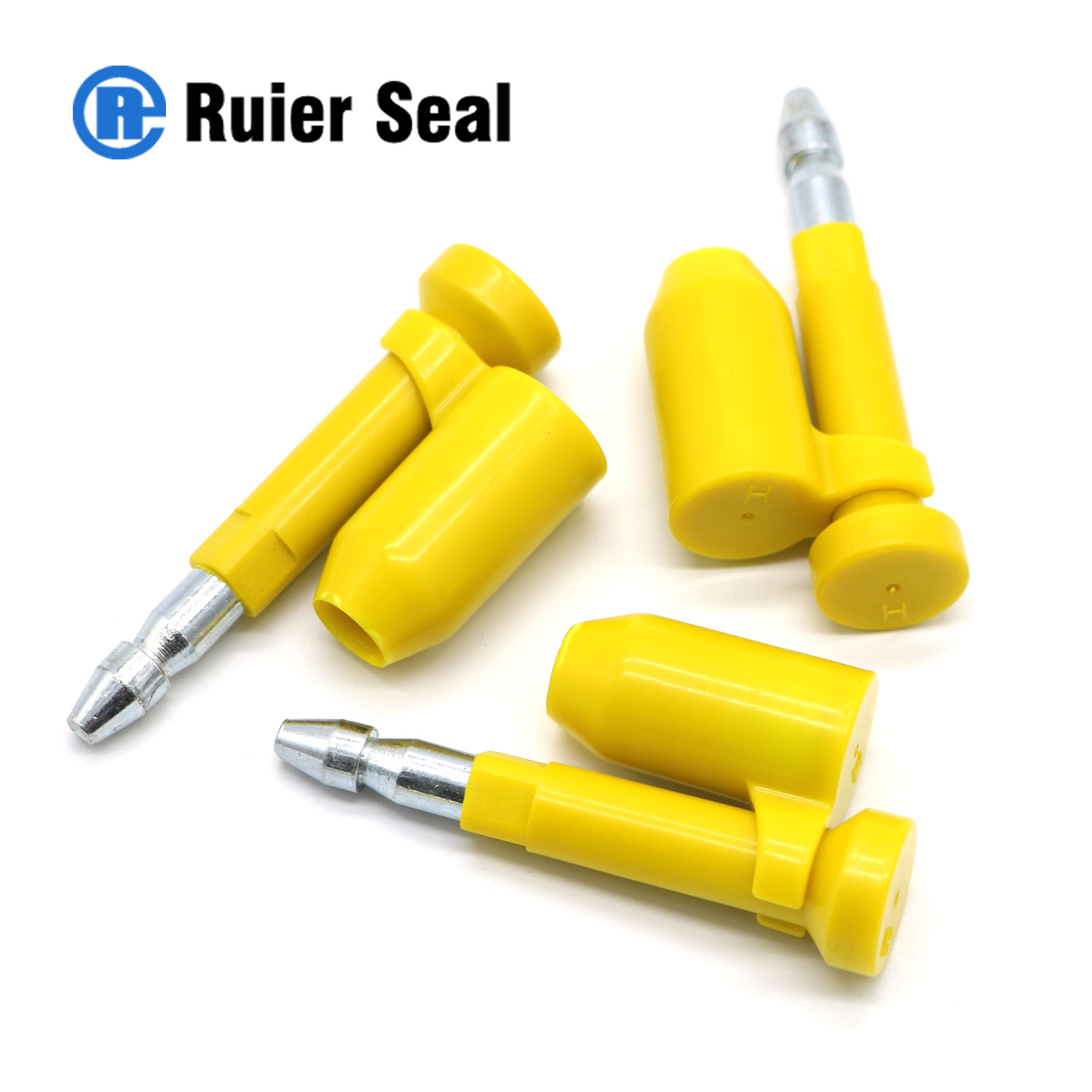

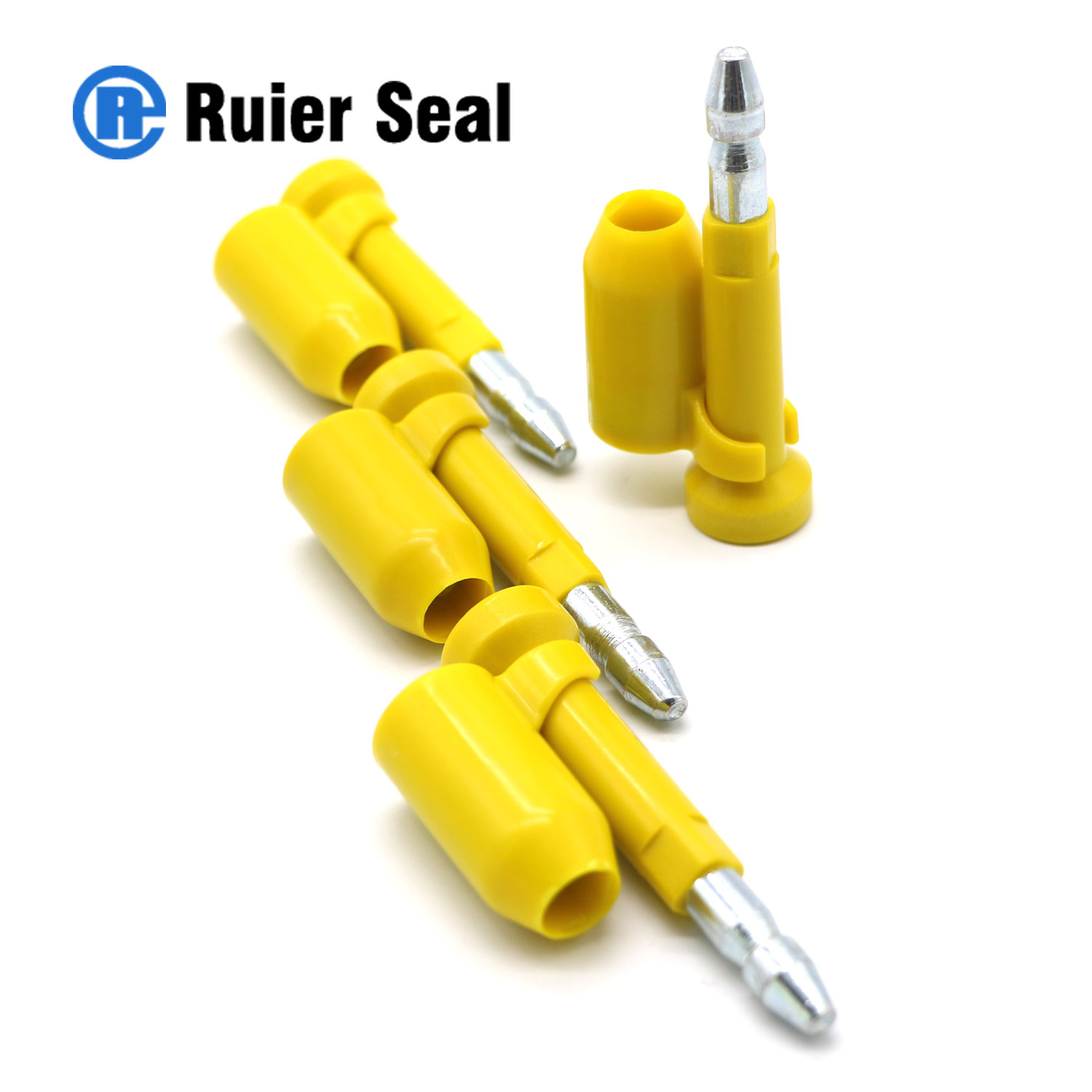

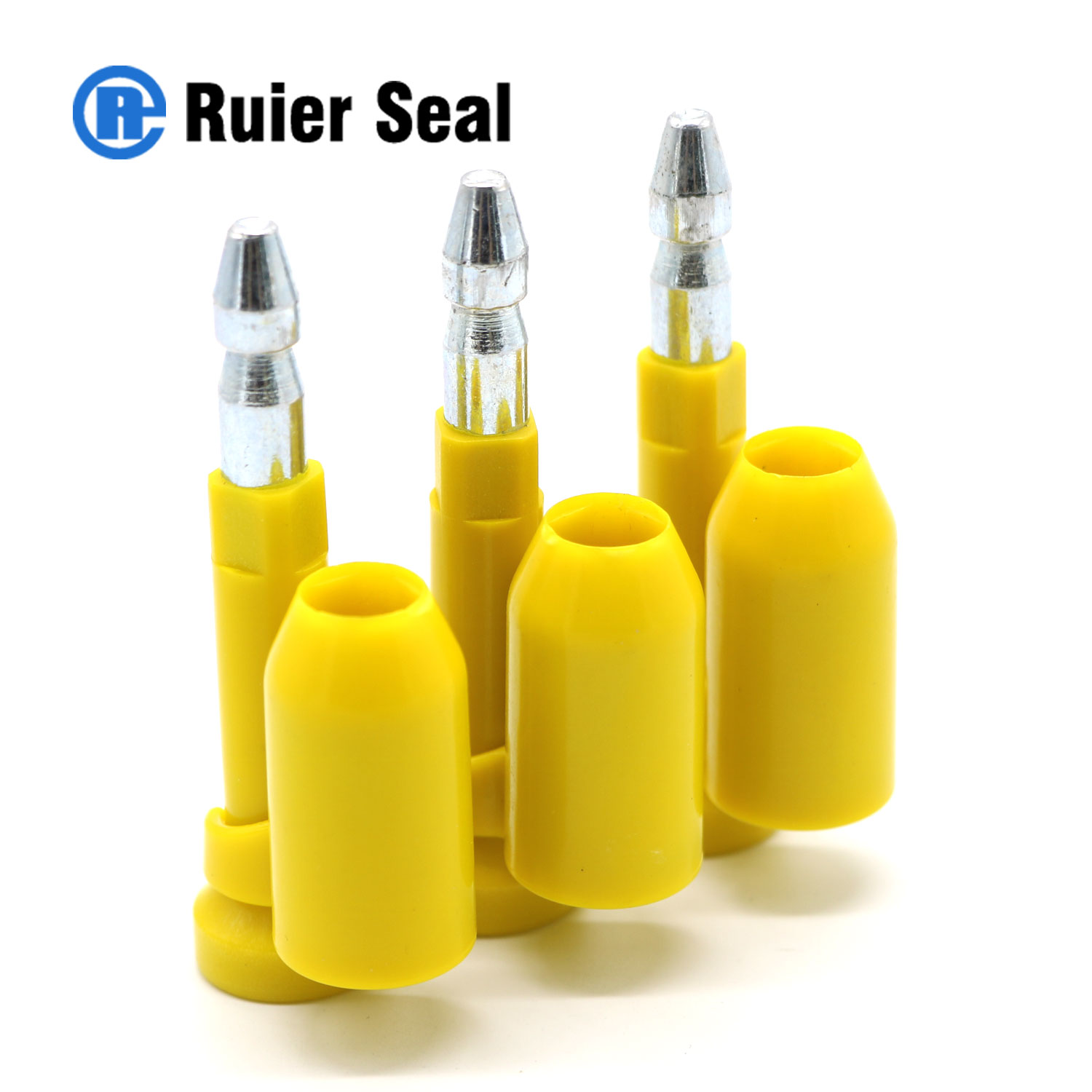

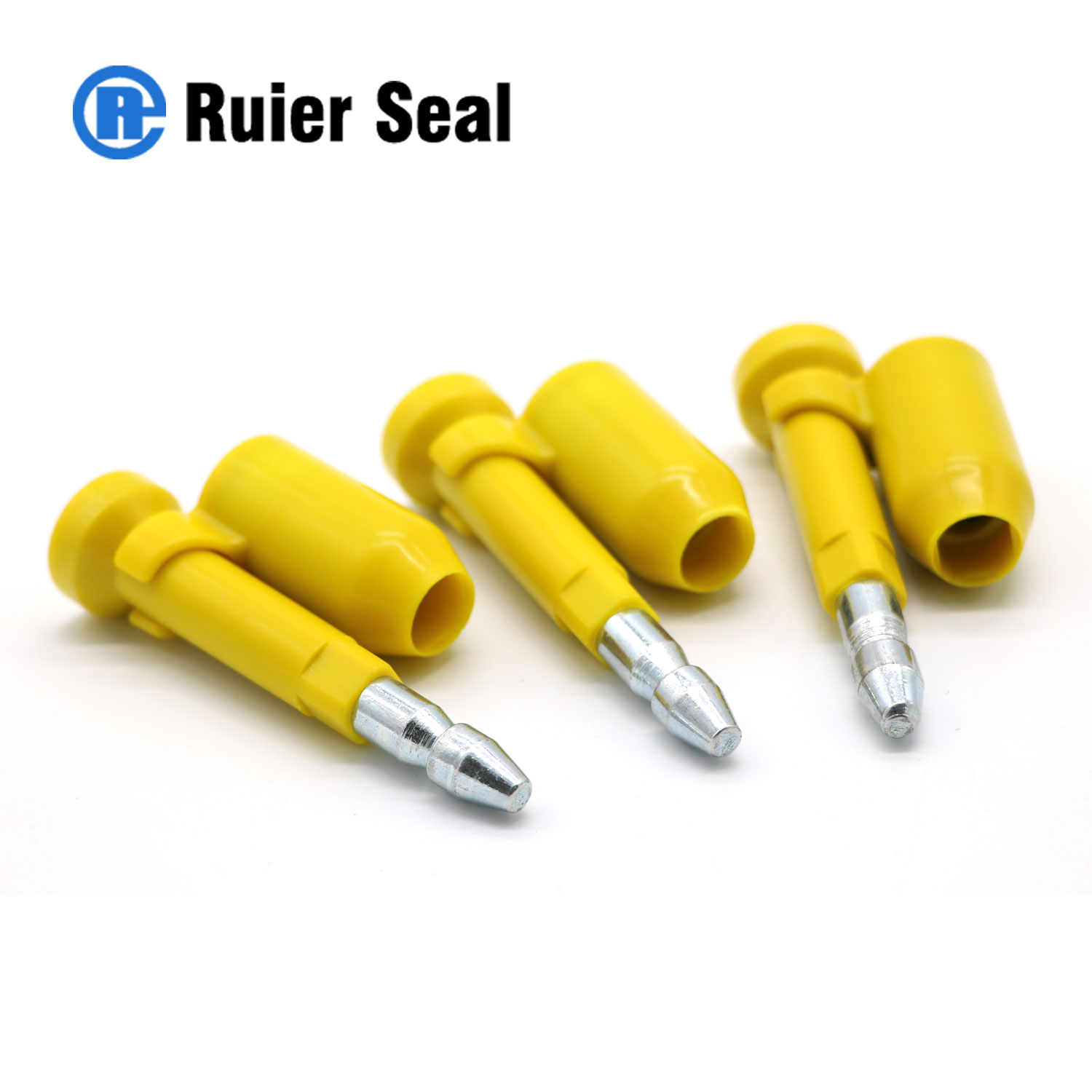

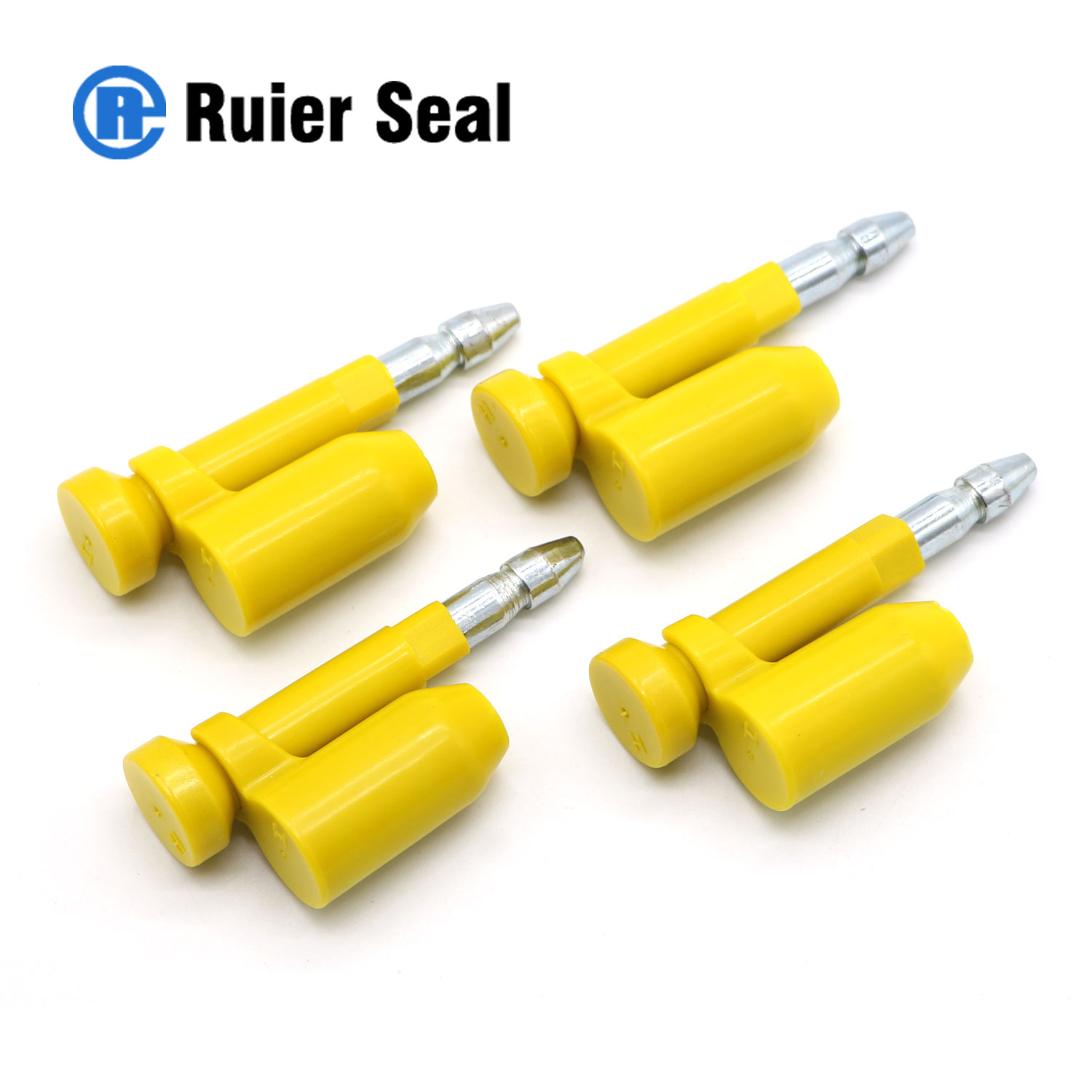

REB305 Anti-rotation high security transport bolt container seal

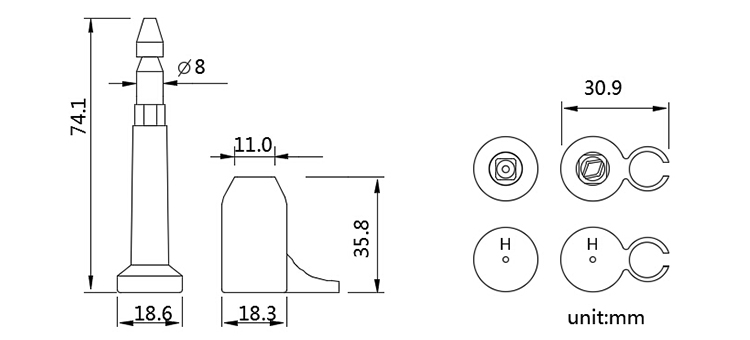

Structure Diagram
Parameter
number
REB305
material
ABS,PP,Q235ALow-carbon steel
height
74.1mm
width
18.6mm
diameter
8mm
weight
51.77g
produce height
72-110mm
Circlip material
Carbon spring steel
Circlip shape
diamond
Rod color
zinc plating-white
Shell color
Yellow,White,Blue,Green,Red,Orange and so on
Printing type
Laser marking or hot stamping
marking contents
Numbers,Letters,mark,bar codes
Tensile Strength
>15KN
Packing
10 pcs / plastic box 25 boxes /carton
Packing size
53*32*15cm
Packing weight
14.59kg
Application
container,Trailer, tanker,shipping,Rail transport, Logistics freight,Safe, lockers,etc.

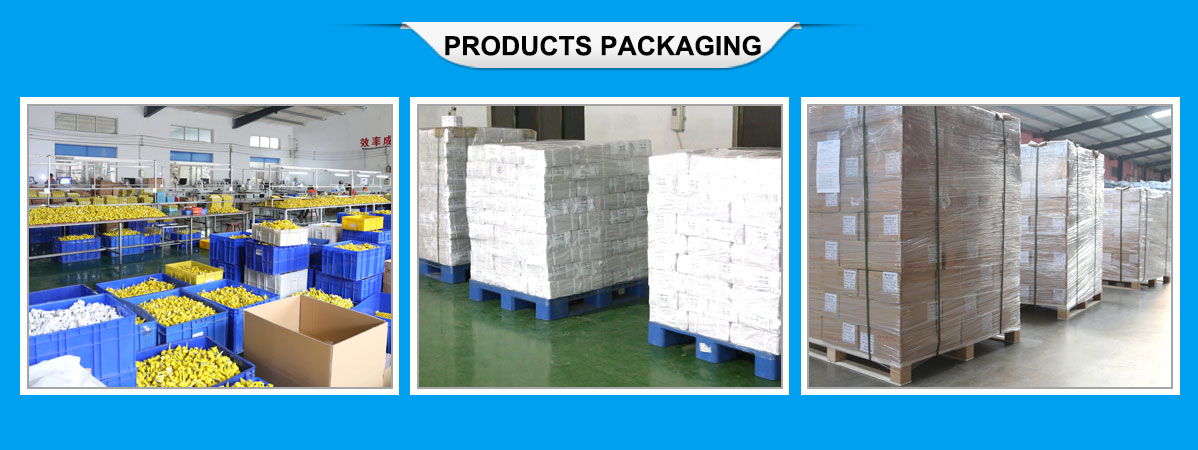

Products Packaging
Company Information
Real Lock is one of the largest manufacturer of security seals
in China and export bolt seals, cable seals, plastic seals , meter seals and so
on, which are applied in all kinds of transportation industry.
The Fast heavy duty plastic seals is a relatively strong seal
despite of its small dimensions. This is partly due to the metal locking
mechanism, which secures the seal.The Fast Seals are available in either
Polypropylene (PP) or Nylon. The characteristics of Nylon material make it
stronger and has a better pull strength than PP material.
The Fast heavy duty plastic seals are easy to use for all applications with small sealing facilities e.g. cassettes for ATM machines and money boxes where the Fast Seals are widely utilised.
Production Scene
Every product needs more than ten strict procedures to be tested before it can leave the factory. Unqualified products are never allowed to flow out of the factory. Advanced production lines and testing equipment are provided to ensure the quality of the products. A modern industrial production enterprise from R&D, design, testing to batch production is formed.
